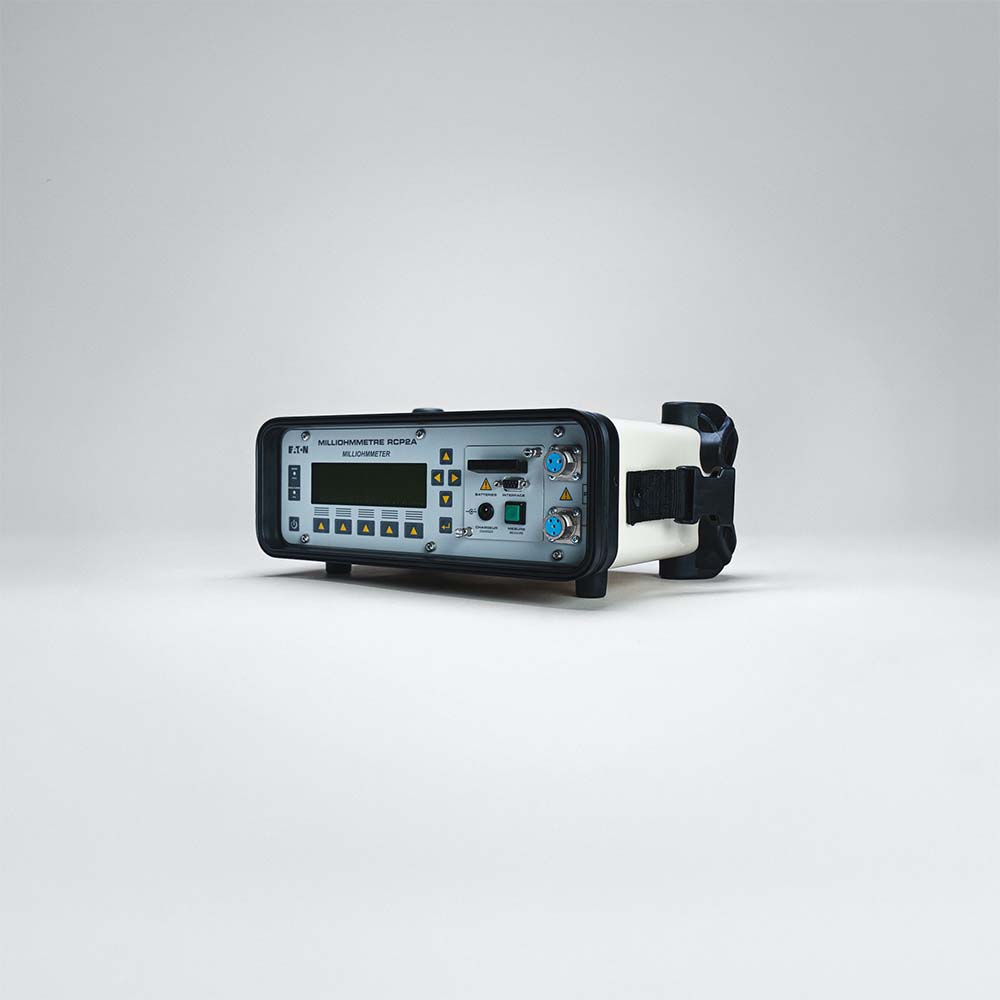

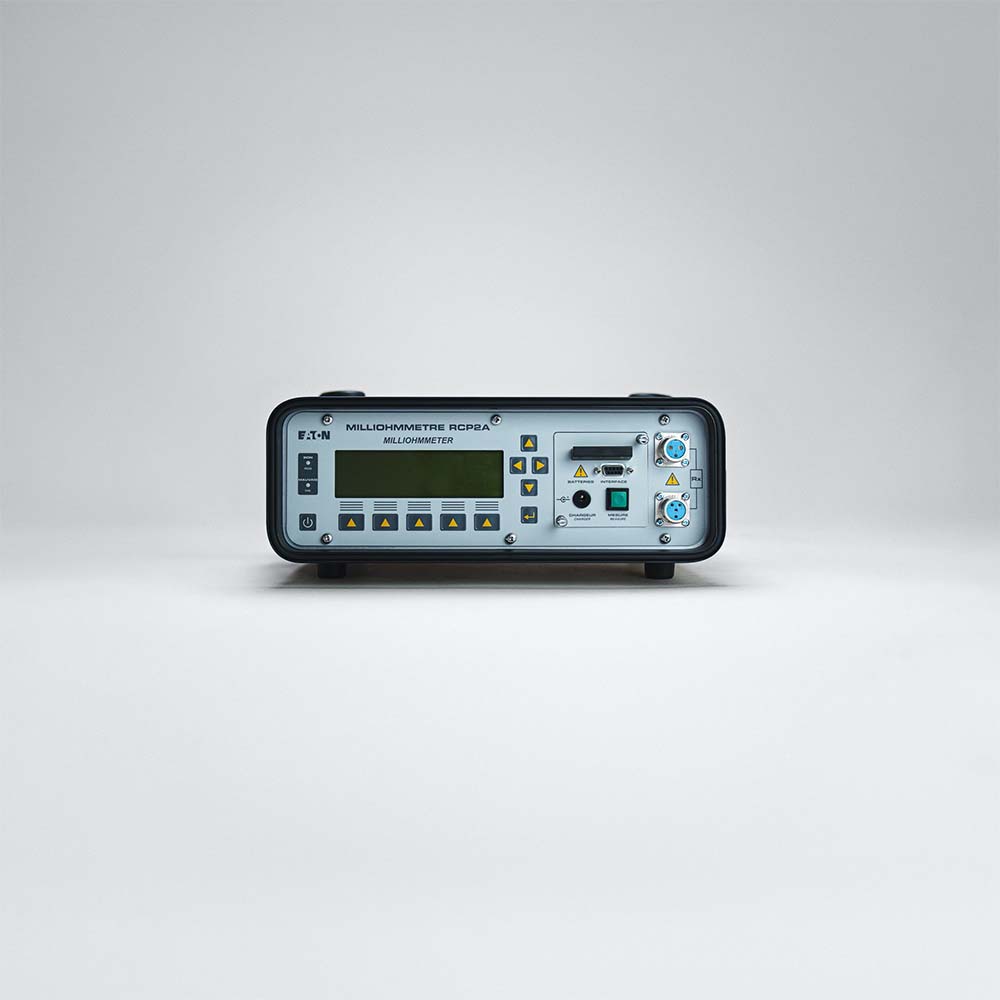

RCP2A
The RCP2A portable digital milliohmmeter is designed to perform metallization measurements that fits with the specific standards of the aerospace industry.
It offers two operating modes:
- An automatic mode with up to 999 test steps created in an Excel environment
- A manual mode from 1μΩ to 6Ω
Designed for easy transport, the RCP2A also allows measurement sequences to be recorded directly in Excel.
TECHNICAL SPECIFICATIONS
Maximum measurement 6 Ω
Minimum resolution 1μΩ
Minimum current 100 mA
Maximum current 10A
Acurracy 0.1%
Battery Oui
Dimensions
Height 250 mm
Width 120 mm
Depth 340 mm
